MCQEasyJEE Main 2025 · 8 April, Shift 2Diodes & Rectifiers

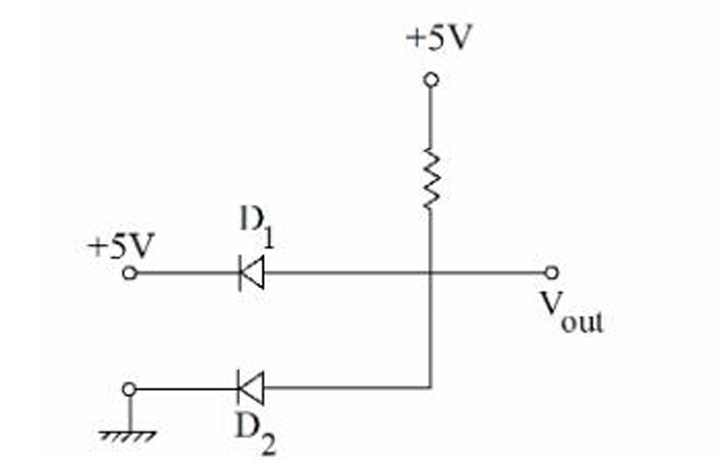

The output voltage in the following circuit is (Consider ideal diode case):

Circuit with two diodes D1 and D2 connected to a common output node Vout, one branch from +5 V, one from ground, and a resistor from the output node upward to +5 V.

A
$-5 \, V$
B
$+5 \, V$
C
$10 \, V$
D
$0 \, V$
