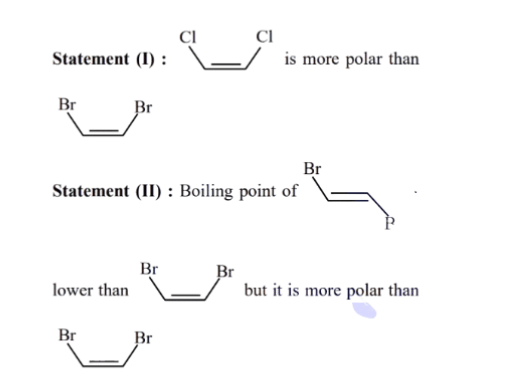

Given: The question compares polarity and boiling point of halogen-substituted ethene isomers.
Find: The most appropriate option based on the exact statements shown in the figure.
Step 1: Analyze Statement I.
The C–Cl bond is more polar than the C–Br bond because chlorine is more electronegative than bromine. In the cis isomers, the bond dipoles do not cancel completely, so the molecule has a net dipole moment. Therefore, cis-1,2-dichloroethene is more polar than cis-1,2-dibromoethene. So Statement I is correct.
Step 2: Analyze Statement II.
The first part concerns boiling point. A polar isomer generally shows stronger dipole-dipole interactions than a comparable nonpolar isomer, and heavier bromine-containing molecules also show stronger dispersion forces.
The second part of Statement II, however, is incorrect as written in the figure. The solution indicates that the structure comparison contains a typo, so the polarity comparison is not valid in the displayed form. Even if the intended chemical idea may be reasonable, the statement must be judged from the actual figure shown.
Therefore, Statement II is incorrect as presented.
Step 3: Conclude.
Thus, Statement I is correct but Statement II is incorrect.
The correct option is A, which corresponds to option (1).
