Figure shows the circuit that contains three resistances ( $9\,\Omega$ each) and two inductors ( $4\,mH$ each). The reading of ammeter at the moment switch $K$ is turned ON, is _____ A.

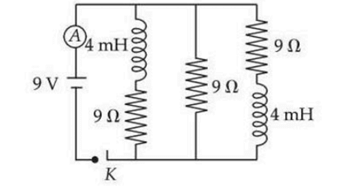

$A $$9\,V$$ battery in series with an ammeter A and a switch K feeds three parallel branches: the left branch is a $$4\,mH$$ inductor in series with a $$9\,\Omega$$ resistor, the middle branch is a single $$9\,\Omega$$ resistor, and the right branch is a $$9\,\Omega$$ resistor in series with a $$4\,mH$$ inductor. The ammeter sits in the main line, before the branch point.$

A
zero
B
$2$
C
$3$
D
$1$
