Rods x and y of equal dimensions but of different materials are joined as shown in figure. Temperatures of end…

Question

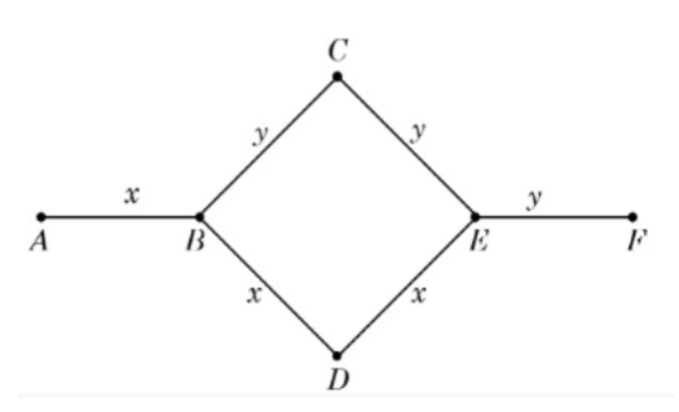

Rods $$x$$ and $$y$$ of equal dimensions but of different materials are joined as shown in figure. Temperatures of end points **$$A$$** and **$$F$$** are maintained at **$$100^\circ	ext{C}$$** and **$$40^\circ	ext{C}$$** respectively. Given the thermal conductivity of rod **$$x$$** is three times of that of rod **$$y$$**, the temperature at junction points **$$B$$** and **$$E$$** are (close to):

Accepted Answer

B. $$89^\circ	ext{C}$$ and $$73^\circ	ext{C}$$ respectively

Answer

A. $$60^\circ	ext{C}$$ and $$45^\circ	ext{C}$$ respectively

Answer

C. $$80^\circ	ext{C}$$ and $$70^\circ	ext{C}$$ respectively

Answer

D. $$80^\circ	ext{C}$$ and $$60^\circ	ext{C}$$ respectively

Answer & step-by-step solution
