From the given transfer characteristic of a transistor in CE configuration, the value of power gain of this configuration is 10x10^x, for RB=10 kΩR_B = 10 \, k\Omega, RC=1 kΩR_C = 1 \, k\Omega. The value of xx is _____.

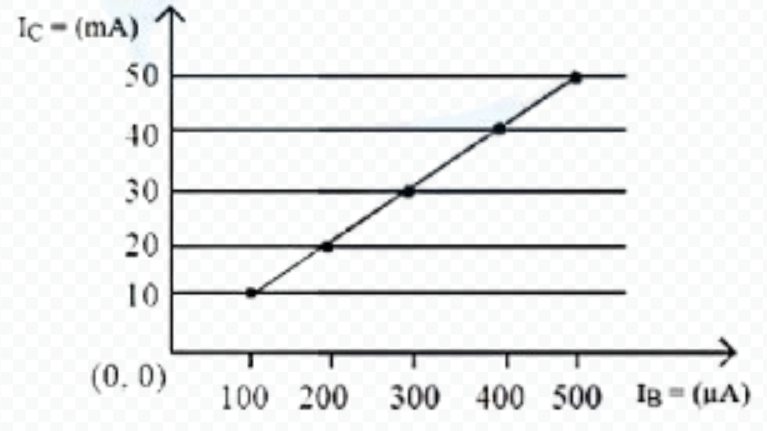

Transfer characteristic graph of a transistor in CE configuration showing collector current in mA versus base current in microampere with plotted points from 100 microampere, 10 mA up to 500 microampere, 50 mA.
